Information |
||
|---|---|---|
| PD No. | CP-1994 | |
| PD Line | LEO Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Aptina | |
| Sensor | AR0521 | |
| Shutter | Rolling Shutter | |
| Sensor Size | 1/2.5" | |
| Sensor Type | CMOS | |
| Resolution | 2592 px x 1944 px | |
| Pixel size | 2.2 μm x 2.2 μm | |
| Frame Rate | 44.7 fps | |
| Mono/Color | Mono | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 60.0 dB | |
| Signal-to-Noise Ratio (typical) | 40.0 dB | |
Camera Data |
||
|---|---|---|
| Interface | USB 3.0 | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O |
1 input(opto-isolated)， 1 output(opto-isolated), 1 bidirectional custom non-isolated I/O |
|
| Power Supply |
USB3.0 power supply / 9-24 VDC |
|
Design |
||
|---|---|---|
| Design | Compact industrial design | |

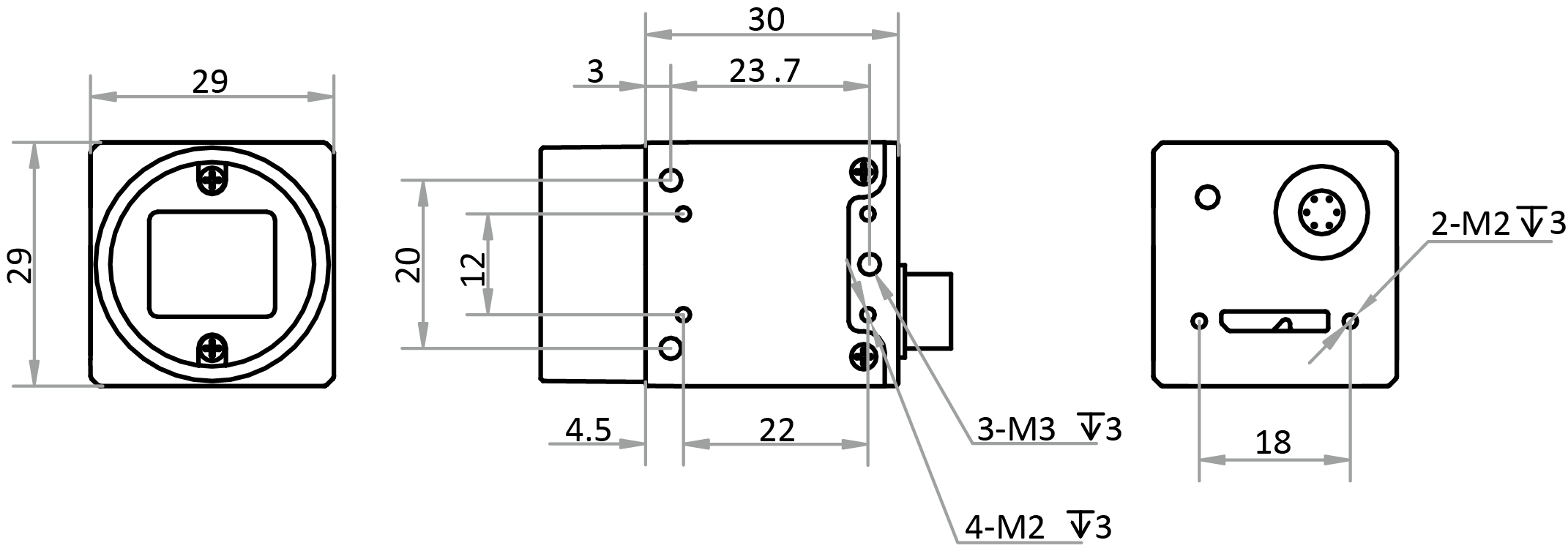

| Dimension (L x W x H) | 30 mm x 29 mm x 29 mm | |
| Lens Mount |
C-mount （CS-Mount can be customized ） |
|
| Working Temperature | 0 - 50°C（Operating），-30 - 70°C（Storage） | |
| Weight（Typical） |
55g
|
|
Software Environment |
||
|---|---|---|
| Driver , SDK | LEO Series Camera Secondary Development Kit（iDatum）or Third-party Software meeting with USB3 Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | USB3 Vision and GenICam | |
