General Information: |
||
---|---|---|
Model Number | CP-0573 | |
Series | CB Series | |
Type | Standard FA Lens |
|
||
---|---|---|
Resolution | 8 Mega Pixels | |
Image Size | 1" CCD/CMOS | |
Focal length | 12.5 mm | |
Aperture, F/# | F1.4 | |
Flange Back | 17.526mm | |
Back Focus | 15.7mm | |
M.O.D | 0.1 m | |
FOV(D×H×V) |
D:66.3° H:38.5° V:42° |
|
TV Distortion | 1.8% | |
TTL | 75.426 mm | |
Relative Illumination | NA | |
Focus Range | NA | |
Iris | Manual | |
Focus | Manual | |
Max Chief Ray Angle | NA | |
Coating Wavelength | 400-1100 nm |
|
||
---|---|---|
Mount | C-mount | |
Filter Size | M46× 0.75 | |
Built-in ir-cut | NA | |
Front/Rear Effective Dia. | Front: Φ35 mm / Rear: Φ18.8 mm | |

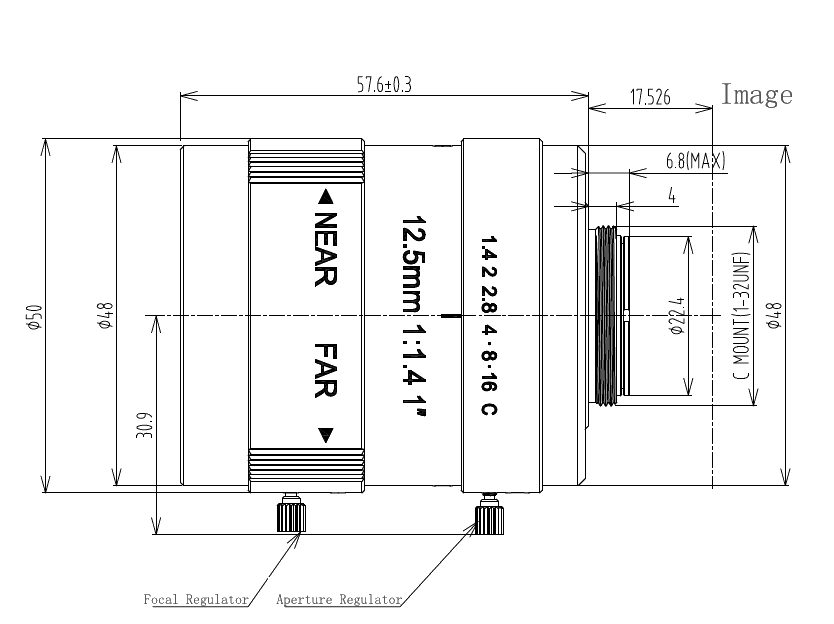

Dimension | Φ50 × 57.6±0.3 mm | |
Temperature Range | -10- 50°C(Working),-20- 60°C(Storage) | |
Weight | NA |
