VT-LEMF9040MP29-0.05X
1. Wide wavelength from 400~950nm
2. Optical performance is superior to lens of SLR
3. Support 5μm pixel 29MP High resolution
4. High Cost Performance
Inquire now
Shop now
Product Description

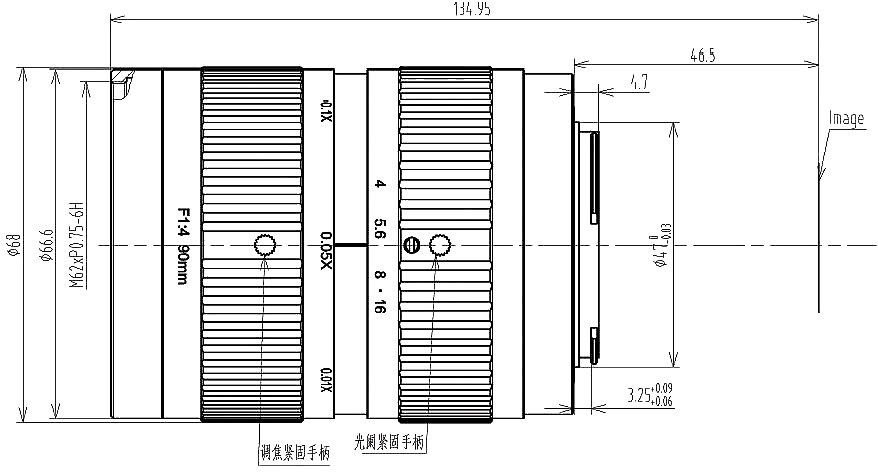

Technical Drawing
Documents & Downloads

General Information

PD No. CP-0704
PD Line Large format
Type Large format F/T Mount lens


Optical Specification

Resolution 29MP
Format 43.2mm
Focal Length 90.0 mm
Aperature, F/# F4-16
Mag. Range 0.01x-0.1x
Standard Mag. 0.05x
Flange Back 46.5



Object Distance

M.O.D.

2112mm

NA




TV Distortion <0.6%
TTL 103.8
Relative Illumination NA
Focus Range NA
Iris Manual
Focus Manual
Max. Chief Ray Angle NA
Coating Wavelength 400-950 nm


Mechanical Parameters

Mount F-mount
Filter Size M62 × 0.75
Bulit-in IR-cut NA
Front/Rear Effective Dia. NA
Dimension Φ68× 128.45 mm
Temperature Range -10- 50°C(Working),-20- 60°C(Storage)
Weight NA

Standard FA industrial lens
