BTL-0.042X-330-12(LM)

1. Optimized for 1/2.5"~1.1" C-Mount cameras;
2. Largest FOV from 26mm upto 300mm;
3. Excellent resolution for high pixel cameras;
4. Low distortion, good telecentricity, big aperture and big depth of field for high end application.

Inquire now

Shop now

Product Description

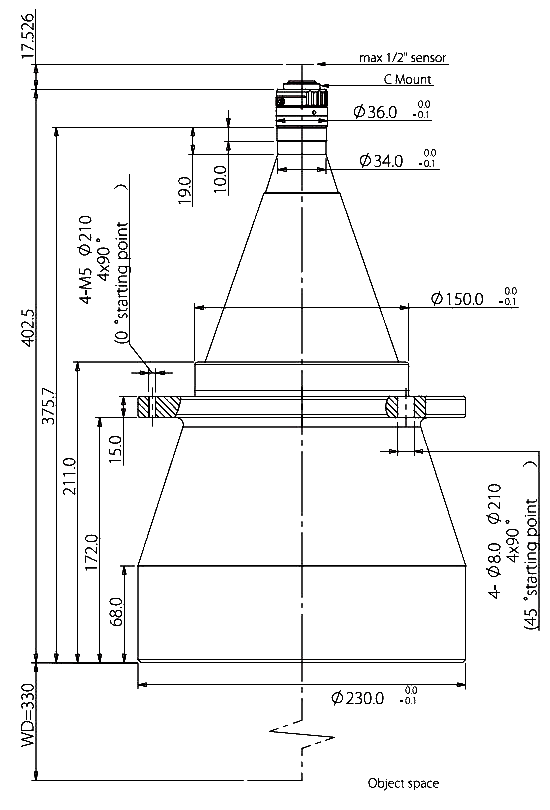

Technical Drawing

Documents & Downloads

Information
	PD No.	BTL-0.042X-330-12(LM)
	PD Line	BTL Series
	Type	Bi-Telecentric Lenses

Lens Data
	FOV	190 Φmm
	Mag.(x)	0.042x
	WD	330±5 mm
	Max. Sesnor Size	8.0(1/2") Φmm
249	F/#	F4.2
	MTF	>210lp/mm
	D.O.F	±248 mm@F11
	Distortion	<0.1%
	Telecentricity	<0.1°
	I/O	750±5 mm
