Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 72 Φmm | |
| Mag.(x) | 0.125x | |
| WD | 178±3 mm | |
| Max. Sesnor Size | 9.0(1/1.8") Φmm | |
| F/# | F4.6 | |
| MTF | >195lp/mm | |
| D.O.F | ±28.1 mm@F11 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 378±3 mm | |

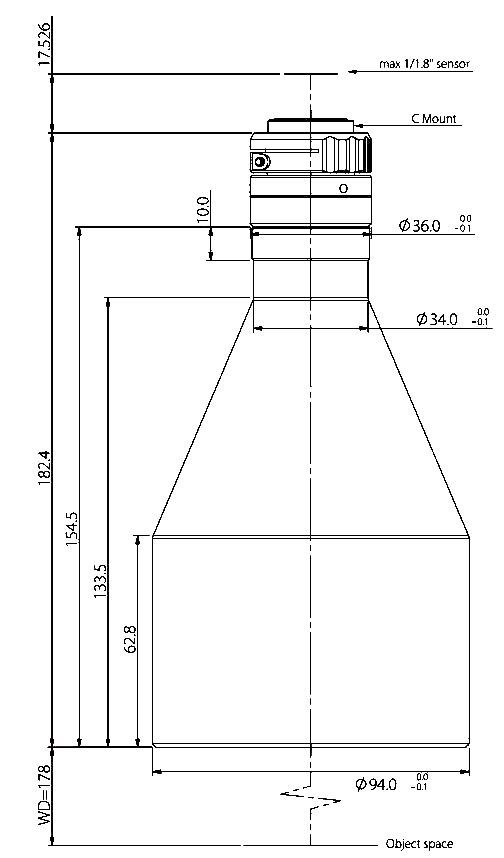

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 182.4 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 1.0 Kg | |
