Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 48 Φmm | |
| Mag.(x) | 0.920x | |
| WD | 138±3 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
|
Field of View |
Line-2K(20.48mm) 22.3 mm Line-4K(28.67mm) 31.2 mm Line-8K(40.96mm) 44.5 mm 35mm (36.0*24.0) 39.1x26.1 mm |
|
| F/# | F25.9 | |
| MTF | >30lp/mm | |
| D.O.F | ±1.2 mm@F25.9 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 384±3 mm | |

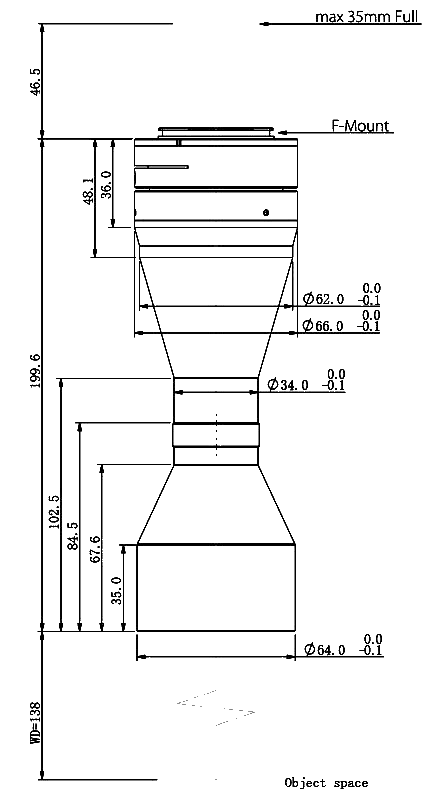

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 199.6 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.9 Kg | |
