Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTLM Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 22 Φmm | |
| Mag.(x) | 0.500 | |
| WD | 65±1 mm | |
| MAX. Sesnor Size | 11.0 Φmm(2/3") | |
| Field of View |
2/3" ICX625/655(8.47*7.1) 16.9x14.2 |
|
| F/# | F5.0 | |
| MTF | >160lp/mm | |
| D.O.F | ±0.8mm@F5 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 189±1 mm | |

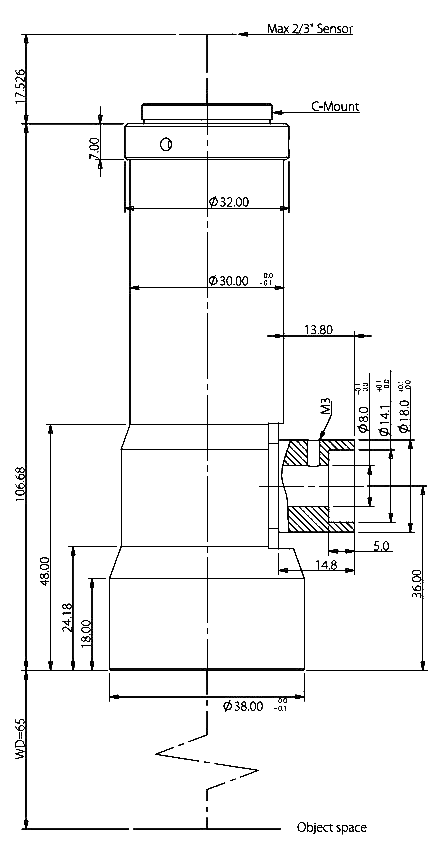

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With coaxial light | Yes | |
| Aperture adjustment | No | |
| Lenght | 106.7 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.2 Kg | |
