Information |
||
|---|---|---|
| PD No. | CLW2-0.22X-200-118 | |
| PD Line | CLW2 Series | |
| Type | Bi-Telecenteic Lenses | |
Lens Date |
||
|---|---|---|
| Mag.(x) | 0.22x | |
| WD | 200±3 mm | |
| MAX. Sesnor Size | 9.0 Φmm(1/1.8") | |
| Field of View |
1/1.8" ICX274/687(7.16*5.44) 32.6x24.7 1/1.8" EV76C570(7.2*5.4) 32.7x24.6 |
|
| F/# | F8 | |
| MTF | >95lp/mm | |
| D.O.F | ±13mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |

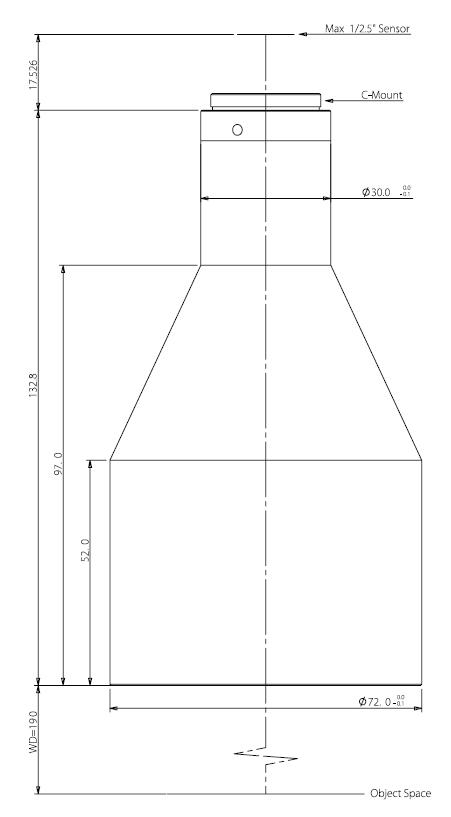

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| With coaxial light | No | |
| Lenght | 150.0 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
