Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | MT Series | |
|
|||||
|---|---|---|---|---|---|
|

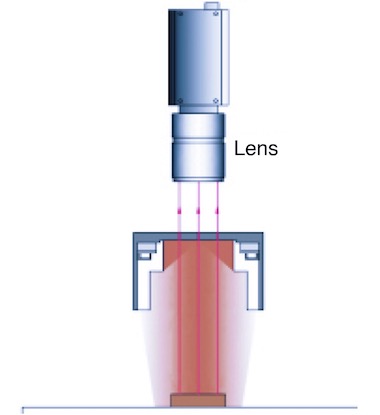

● The LED beads are evenly distributed around four sides. ● Diffusion light come through light guiding plate. |
|||||
|
|||||
|---|---|---|---|---|---|
|

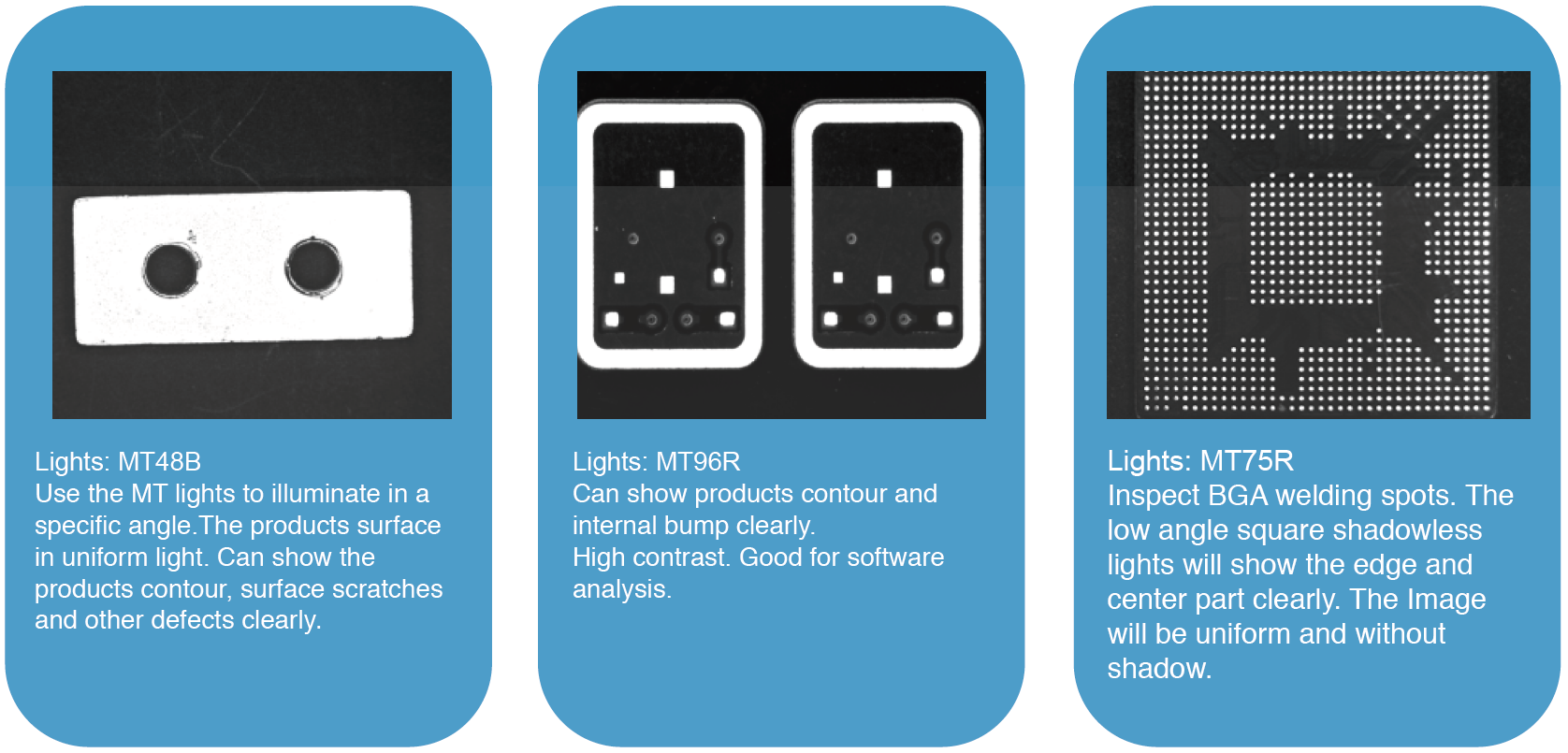

● Inspection of cigarette cases ● Inspection of diode pins flatness characters on IC pins ● Inspection of metal surface scratches ● Inspection of BGA welding spot ● Perfect for square workpieces, it can detect the outline of corners |
|||||
Specifications |
||
|---|---|---|
| Light Area |
Length：36-108 mm Width：36-108 mm |
|
| Supply Voltage | 24 V | |
| Power Cons. |
Red 620-630nm：1.6-4.1 W Blue 465-475nm：2.1-5.1 W White：2.6-6.3 W |
|
| Length | 48-120 mm | |
| Width | 48-120 mm | |
| High | 30 mm | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
