LiN+ High Power Line Scan Illumination
1、With high power LEDs, the light intensity is times higher than standard one.
2、Aluminum housings ensure an optimal heat dissipation and dispose of various practical mounting possibilities.
Inquire now
Shop now
Product Description
Documents & Downloads

Information

PD No. CP-0704
PD Line LiN+ Series

Features

● With high power LEDs, the light intensity is times higher than standard one.
● Aluminum housings ensure an optimal heat dissipation and dispose of various practical mounting possibilities.


Applications

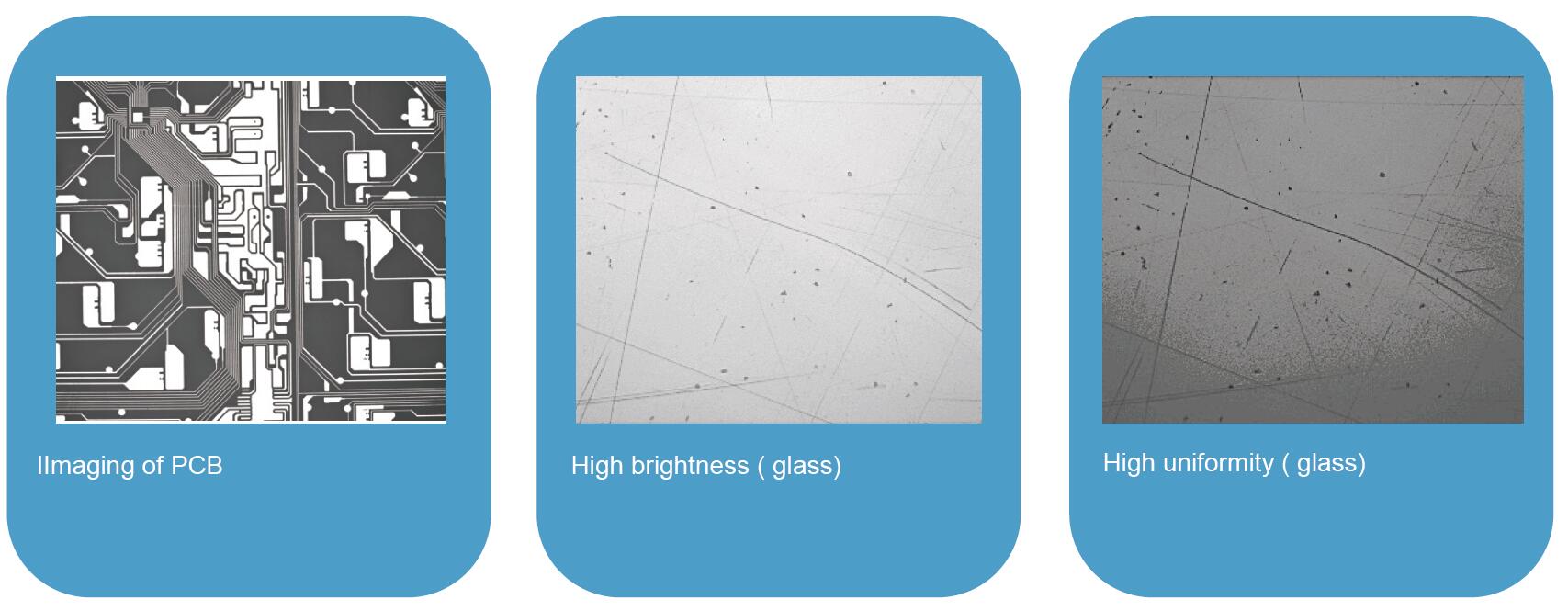

● Inspection of LCD, TP screen, LTO circuit, PCB circuit, medicine and food packaging, defects of printing surface on the assembly line, etc..

● Appearance inspection of food or medicine


Specifications

Light Area

Length:100-2400 mm

Width:17 mm

Supply Voltage 48 V
Length 143-3470 mm (Customizable)
Width 58 mm (Customizable)
High 90.1-101.6 mm (Customizable)
Connector SMR-03V-B
Polarity 1: (+), 2: NC, 3: (-)
Cable Length 0 mm
Operating environment (indoor)

Temperature: 0~40℃

Humidity:20% to 85% RH (with no condensation)

Life Time

White:30,000hrs

Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Case Material Aluminum alloy, Resin

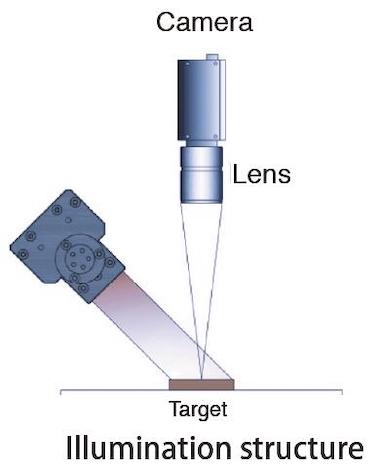

LiN+ Series Line Scan Illumination Overview
