General Information: |
||
|---|---|---|
| Model Number | CP-1160 | |
| Series | CD Series | |
| Type |
Standard FA Lens
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 10 Mega Pixels | |
| Image Size | 4/3" CCD/CMOS | |
| Focal length | 12 mm | |
| Aperture, F/# | F2.0-22 | |
| Flange Back | 17.526mm | |
| Back Focus | 18.93 mm | |
| M.O.D | 0.15 m | |
|
FOV(D×H×V) |
D:89.02° H:75.46° V:61.08° |
|
| TV Distortion | -2.40%@y=11.5mm | |
| Relative Illumination | NA | |
| Focus Range | NA | |
| Iris | Manual | |
| Focus | Manual | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength |
400-1100 nm
|
|
Mechanical Parameters: |
||
|---|---|---|
| Mount | C-mount | |
| Filter Thread | M77.0× 0.75 | |
| Front/Rear Effective Dia. | NA | |

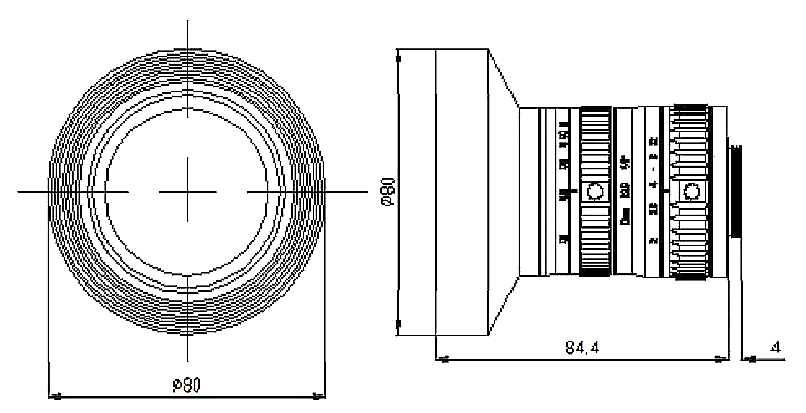

| Dimension | Φ80 × 88.4 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
