General Information |
||
|---|---|---|
| PD No. | CP-0833 | |
| PD Line | Large Format Series | |
| Type |
Large Format F/T mount lenses
|
|
Optical Specifications |
||
|---|---|---|
| Resolution | 30lp/mm 5 MP | |
| Image Size | 43mm | |
| Focal length | 24.0 mm | |
| Aperture, F/# | F2.8-22 | |
| Flange Back | NA | |
| Back Focus | 36 mm | |
| M.O.D | 0.15 m | |
|
FOV(D×H×V) |
D:84° H:/° V:/° |
|
| TV Distortion | <-4% | |
| TTL | NA | |
| Relative Illumination | NA | |
| Focus Range | NA | |
| Iris | Manual | |
| Focus | Manual | |
| Max Chief Ray Angle | NA | |
| Coating Wavelength |
400-950 nm
|
|

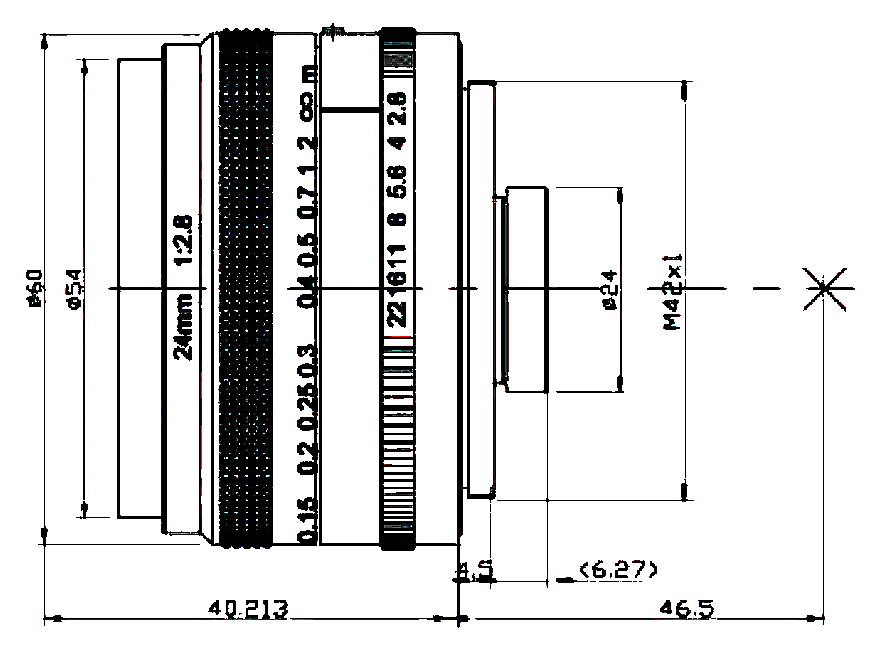

Mechanical Parameters |
||
|---|---|---|
| Mount | M42 x 1(T) | |
| Filter Size | M52 × 0.75 | |
| Built-in ir-cut | NA | |
| Front/Rear Effective Dia. | NA | |
| Dimension | Φ60 × 40.21 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | 200 g | |
