Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 62 Φmm | |
| Mag.(x) | 1.419x | |
| WD | 123±3 mm | |
| Max. Sesnor Size | 88 mm | |
| F/# | F7.0 | |
| MTF | >115lp/mm | |
| D.O.F | ±0.1@F7.0 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 601±3 mm | |

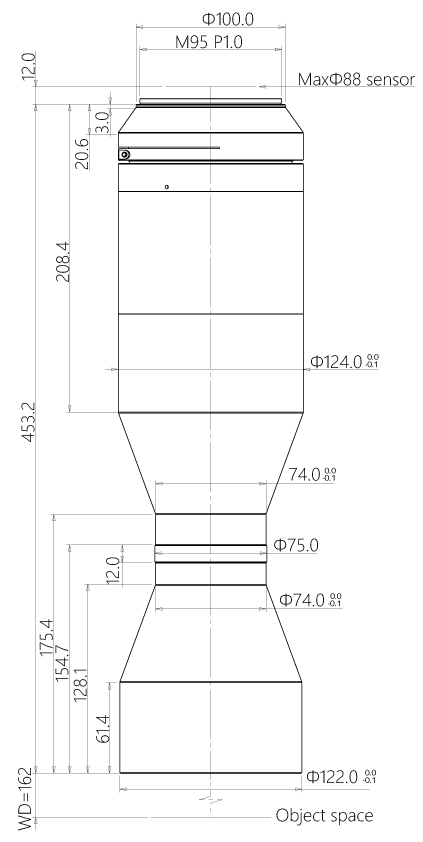

Design |
||
|---|---|---|
| Lens Mount | M95 | |
| Length | 466.3 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 5.5 Kg | |
| Variable Iris | No | |
| Coaxial Light | No | |
Field of View(mmxmm) |
||
|---|---|---|
| KAI-47051 (48.7x29.0) | 45.3x38.3 | |
| Linescan-12K 5μm (81.9mm) | 57.7 | |
| Linescan-16K 3.5/3.53μm(86.0mm) | 60.6 | |
