General Information |
||
|---|---|---|
| PD No. | VT-LHUV5030 | |
| PD Line | FA Series | |
| Type | UV Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 100lp/mm (2MP) | |
| Image Size | 2/3" CCD/CMOS | |
| Focal Length | 50 mm | |
| FOV (D/H/V) | 12.55°/7.55°/10.06° | |
| Aperture, F/# | F3.0 | |
| Back Focus | 26.55mm | |
| Distortion | <-0.08% | |
| Iris | Manual | |
| Focus | Manual | |
| Wavelength | 200nm-1000nm | |
Design |
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | M34 x 0.5 | |

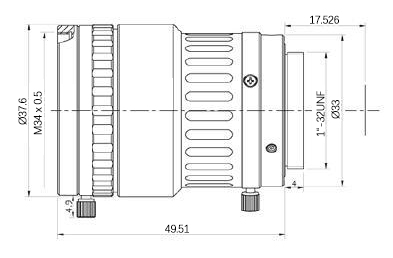

| Dimension | ?37.6 x 49.51 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
