General Information |
||
|---|---|---|
| PD No. | VT-LHUV8528 | |
| PD Line | FA Series | |
| Type | UV Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 100lp/mm (2MP) | |
| Image Size | 2/3" CCD/CMOS | |
| Focal Length | 85 mm | |
| FOV (D/H/V) | 14.03° /11.28° /8.48° | |
| Aperture, F/# | F2.8 | |
| Back Focus | 43.34 mm | |
| Distortion | <-0.08% | |
| Iris | Manual | |
| Focus | Manual | |
| Wavelength | 200nm-1000nm | |
Design |
||
|---|---|---|
| Mount | F-mount | |
| Filter Size | M55 x 0.75 | |

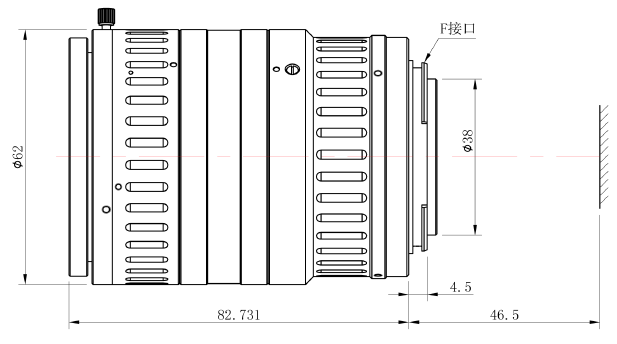

| Dimension | ?62 x 82.73 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
