VT-VIRLEN3520MP5-H1
  • IR Corrected Lenses
  • 5MP, C-Mount design with strong compatibility
Inquire now
Shop now
Product Description

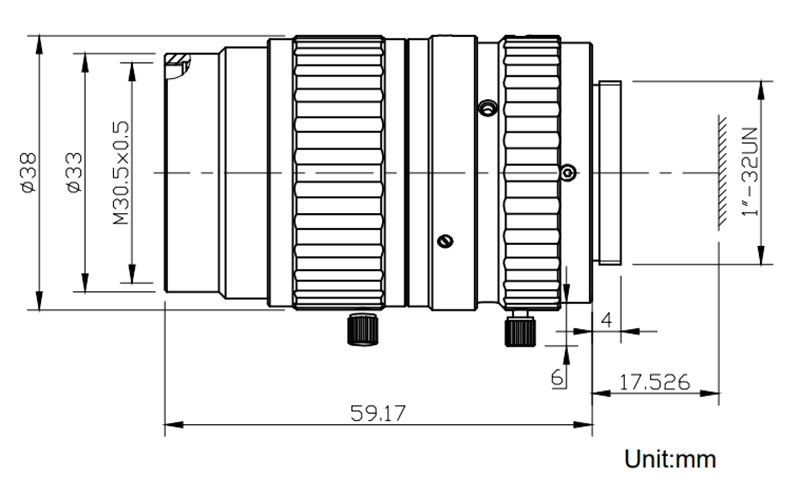

Technical Drawing
Documents & Downloads

General Information

Model Number VT-VIRLEN3520MP5-H1
Series VT-VIRLEN Series
Type Standard FA Lens

Optical Specifications

Resolution 5 Mega Pixels
Image Size 1" CCD/CMOS
Focal length 35 mm
Aperture, F/# F2.0
Design Wavelength 400-1000nm
FOV D*H*V 26.03°x20.7°x15.45°
Distortion <-3.4%
IR Correction Yes
Iris Manual
Focus Manual

Design

Mount C-mount
Filter Size M30.5X0.5
Dimension Φ38×59.17mm
Temperature Range -20- 65°C(Working)

Standard FA industrial lens
