[ RETURN LIST ] HOME>PRODUCTS>INDUSTRIAL LENSES
PRODUCTS
VT-VIRLEN1214MP12-H1
  • IR Corrected Lenses
  • 12MP, C-Mount design with strong compatibility
Inquire now
Shop now
Product Description

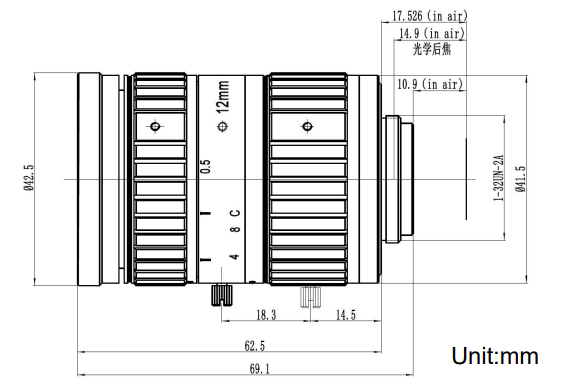

Technical Drawing
Documents & Downloads

General Information

Model Number VT-VIRLEN1214MP12-H1
Series VT-VIRLEN Series
Type Standard FA Lens

Optical Specifications

Resolution 12 Mega Pixels
Image Size 1" CCD/CMOS
Focal length 12 mm
Aperture, F/# F1.4
FOV D*H*V 68.2°x 61.7°x 34.4°
TV Distortion -3.65%
IR Correction Yes
Iris Manual
Focus Manual

Design

Mount C-mount
Filter Size /
Dimension Φ42.5×69.1mm
Temperature Range -30~+70° C(Working)

Standard FA industrial lens
