Information |
||
|---|---|---|
| PD No. | iCt10CG13A-SE | |
| PD Line | iCt Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Gpixel | |
| Sensor | GMAX4002 | |
| Shutter | Global Shutter | |
| Sensor Size | 1/1.7" | |
| Sensor Type | CMOS | |
| Resolution | 1280 px × 1024 px | |
| Pixel size | 4.0 μm × 4.0 μm | |
| Frame Rate | 90 fps | |
| Mono/Color | Color | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 66 dB | |
| Signal-to-Noise Ratio (typical) | 40 dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 input(opto-isolated)，1 output(opto-isolated)，1 configurable input and output(without opto-isolated) | |
| Power Supply | PoE or 9-24 VDC | |
Design |
||
|---|---|---|

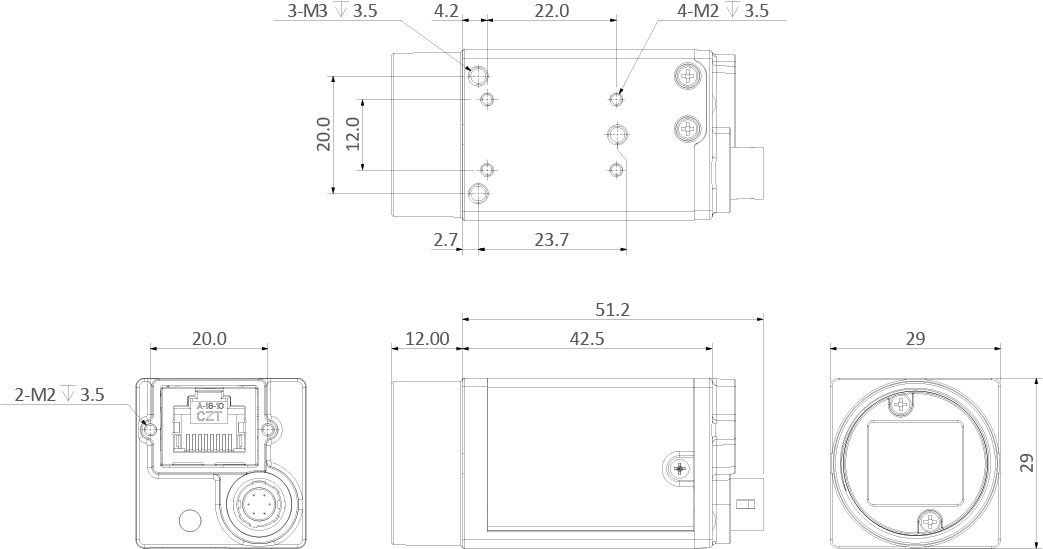

| Dimension | 42 mm x 29 mm x 29 mm | |
| Lens Mount | C-mount （CS-Mount can be customized ） | |
| Working Temperature | 0- 50°C（Operating），-30- 80°C（Storage） | |
| Weight（Typical） | 98g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | iCentral or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows，Linux | |
| Conformity | GigE Vision and GenICam | |
