General Information |
||
|---|---|---|
| PD No. | VLEN2-3520SW-H1.1 | |
| PD Line | FA Series | |
| Type | SWIR Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 200lp/mm | |
| Image Size | 1.1" CCD/CMOS | |
| Focal Length | 35 mm | |
| FOV (D/H/V) | 28° | |
| Aperture, F/# | F2.0 | |
| Back Focus | 11.6 mm | |
| Distortion | ≤-0.07% | |
| Iris | Manual | |
| Wavelength | 400-1200nm | |

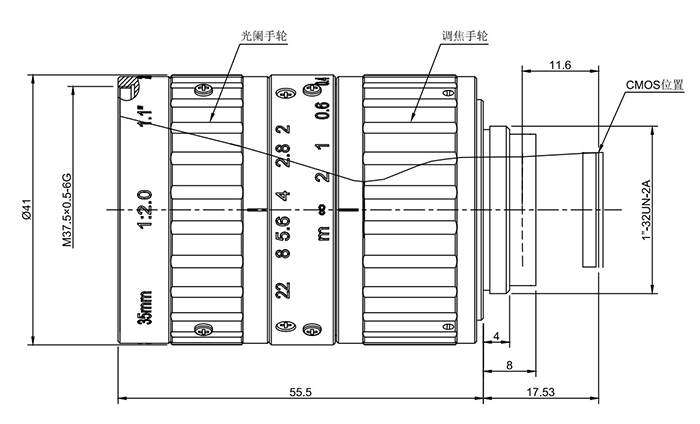

Design |
||
|---|---|---|
| Mount | C-mount | |
| Filter Screw Size | M37.5×0.5mm | |
| Dimension | Φ41×55.5 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
