Information |
||
|---|---|---|
| PD No. | CP-1272 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 42 Φmm | |
| Mag.(x) | 0.395x | |
| WD | 118±3 mm | |
| Max. Sesnor Size | 16.6(1") Φmm | |
| Field of View |
1.1" KAI-04050(12.85x9.64) 32.5x24.4 1.1" CMV4000(11.26x11.26) 28.5x28.5 1.1" ICX674/694/814(12.5x10.0) 31.7x25.3 |
|
| F/# | F6.5 | |
| MTF | >130lp/mm | |
| D.O.F | ±4.1 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 278±3 mm | |

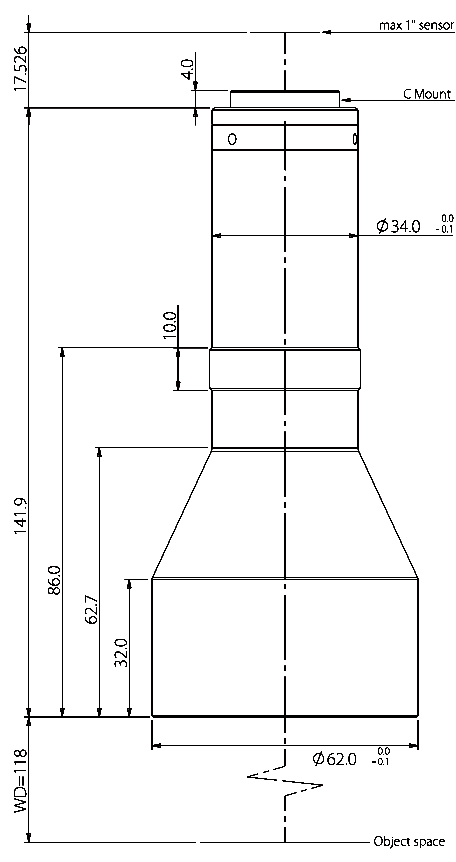

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 141.9 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.5 Kg | |
