Information |
||
|---|---|---|
| PD No. | CP-1351 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 48 Φmm | |
| Mag.(x) | 0.346x | |
| WD | 128±3 mm | |
| Max. Sesnor Size | 16.6(1") Φmm | |
| Field of View |
1.1" KAI-04050(12.85x9.64) 37.1x27.9 1.1" CMV4000(11.26x11.26) 32.5x32.5 1.1" ICX674/694/814(12.5x10.0) 36.1x28.9 |
|
| F/# | F6.5 | |
| MTF | >130lp/mm | |
| D.O.F | ±5.3 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 301±3 mm | |

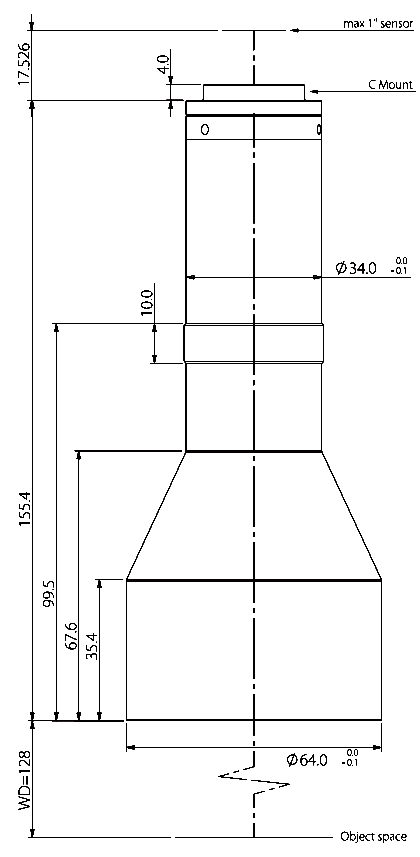

Design |
||
|---|---|---|
| Lens Mount | C-mount | |
| Length | 155.4 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 0.5 Kg | |
