Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | BTL Series | |
| Type | Bi-Telecentric Lenses | |
Lens Data |
||
|---|---|---|
| FOV | 80 Φmm | |
| Mag.(x) | 0.545x | |
| WD | 228±4 mm | |
| Max. Sesnor Size | 44 Φmm (Full frame 35mm) | |
| Field of View |
Line-2K(20.48mm) 37.2 mm Line-4K(28.67mm) 52.1 mm Line-8K(40.96mm) 74.5 mm 35mm (36.0*24.0) 65.5x43.6 mm |
|
| F/# | F7.3 | |
| MTF | >115lp/mm | |
| D.O.F | ±2.2 mm@F16 | |
| Distortion | <0.1% | |
| Telecentricity | <0.1° | |
| I/O | 546±4 mm | |

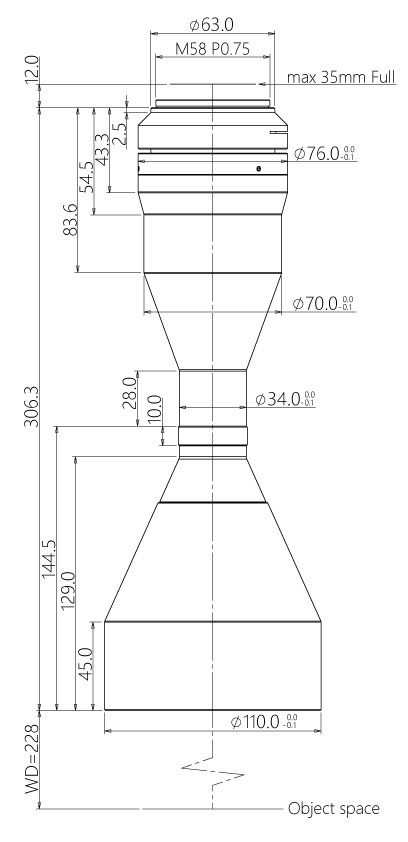

Design |
||
|---|---|---|
| Lens Mount | F-mount | |
| Length | 306.3 mm | |
| Temperature | -10 - 50°C（Operating），-20 - 60°C（Storage） | |
| Weight | 2.7 Kg | |
