Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | HL+ Series | |
|
|||||
|---|---|---|---|---|---|
|
● With high power LEDs, the light intensity is times higher than standard one.
|
|||||
|
|||||
|---|---|---|---|---|---|
|

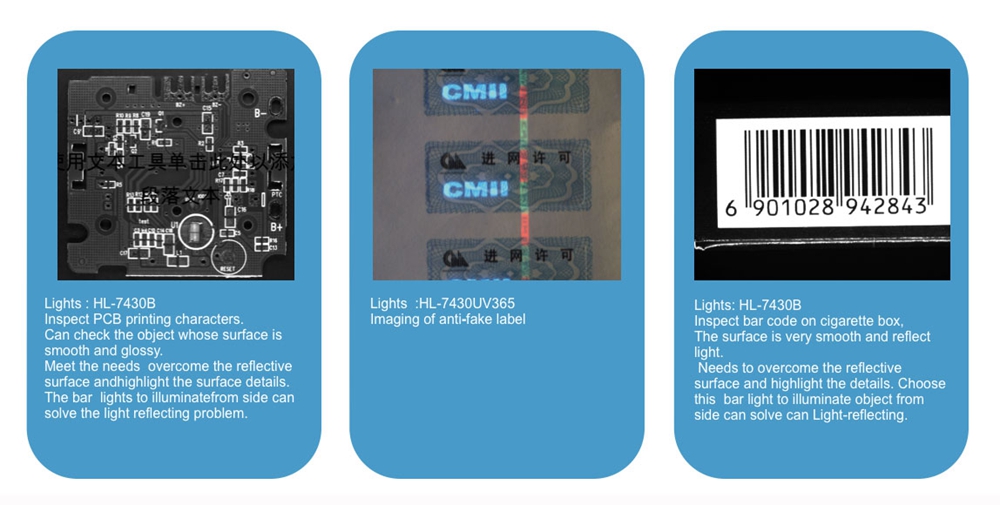

● Robot operation directive. ● Long distance illumination. ● Inspection of sealant padding in auto industry ● Large format printing material, etc..
|
|||||
Specifications |
||
|---|---|---|
| Light Area |
Length：100-1000 mm Width：20-110 mm |
|
| Supply Voltage | 24 V | |
| Power Cons. | White：8.5-170 W | |
| Length | 112-1050.5 mm (Customizable) | |
| Width | 28-85 mm (Customizable) | |
| High | 34-75.4 mm (Customizable) | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | 500 mm | |
| Optional Accessory |
Diffusion plate, Polarizing plate. DC extension cable:：1m / 2m / 3m |
|
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
|
|---|
