HLMD Square Bar type Illumination
1、Four high-intensity bar LED arrangement
2、Optimal direct brightfi eld or oblique dark field lighting from adjustable angles
3、Can be controlled independently
Inquire now
Shop now
Product Description
Documents & Downloads

Information

PD No. CP-0704
PD Line LT3 HLMD Series

Features

● Four high-intensity bar LED arrangement
● Optimal direct brightfi eld or oblique dark field lighting from adjustable angles
● Can be controlled independently


Applications

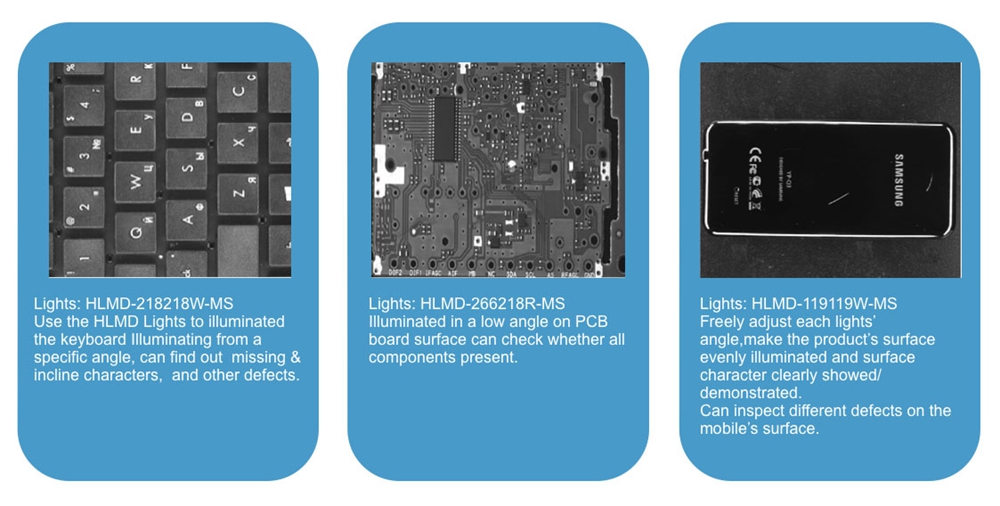

● OCR on IC chips.

● Location of MARK point.

● Various inspections of large area flat material.


Specifications

Bar Numbers 4
Light Area

Length:28-290 mm

Width:28-290 mm

Supply Voltage 24 V
Power Cons.

Red 620-630nm:2.0-10.4 W

Blue 465-475nm:3.0-76 W

White:3.0-76 W

Length 78-379.5 mm (Customizable)
Width 78-379.5 mm (Customizable)
High 25-37.5 mm (Customizable)
Connector SMR-03V-B
Polarity 1: (+), 2: NC, 3: (-)
Cable Length 500 mm
Optional Accessory

Diffusion plate, Polarizing plate.

DC extension cable::1m / 2m / 3m

Operating environment (indoor)

Temperature: 0~40℃

Humidity:20% to 85% RH (with no condensation)

Life Time

White:30,000hrs

Red: 60,000hrs (Depends on the operating environment, not a gurantee)

Case Material Aluminum alloy, Resin

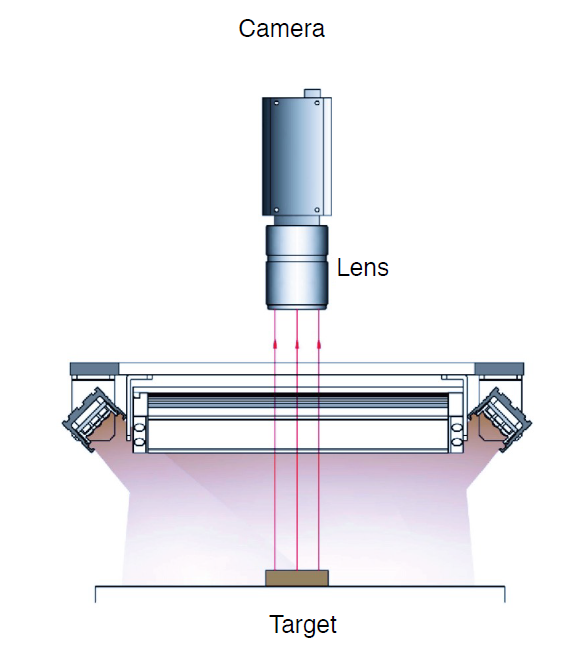

HLMD Series Square Bar type Illumination Overview
