Information |
||
|---|---|---|
| PD No. | CP-0823 | |
| PD Line | LT3 Series | |
Input Features |
||
|---|---|---|
| Drive Mode | Constant voltage | |
| Dimming Mode | Pulse width modulation | |
| Input Voltage | AC100-240V 50/60Hz | |
Output Features |
||
|---|---|---|
| Number of Channels | 4 | |
| Output Voltage | 48V | |
| Max Output Current | 10A (instantaneous value) | |
| Total Power | 120W | |

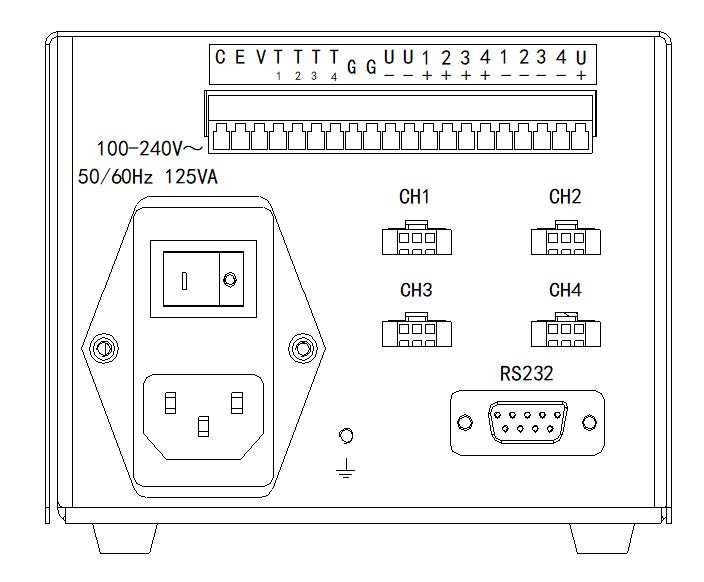

| Output Ports | SMP-03V-BC（1：Output+ 2：NC 3：Output-） | |
| External Voltage | 12V～24V（the current is about 10mA） | |
Trigger Features |
||
|---|---|---|
| Trigger Delay | <10us | |
Environment |
||
|---|---|---|
| Operating temperature and humidity | Temperature:0～40℃; Humidity:20～85%RH (non-condensation) | |
| Storage temperature and humidity | Temperature:-20～60℃；Humidity：20～85%RH (non-condensation) | |
Others |
||
|---|---|---|
| Telecommunication | RS232 | |
| Cooling Mode | Forced cooling | |
