Information |
||
|---|---|---|
| PD No. | CP-0704 | |
| PD Line | AOI Series | |
|
|||||
|---|---|---|---|---|---|
|

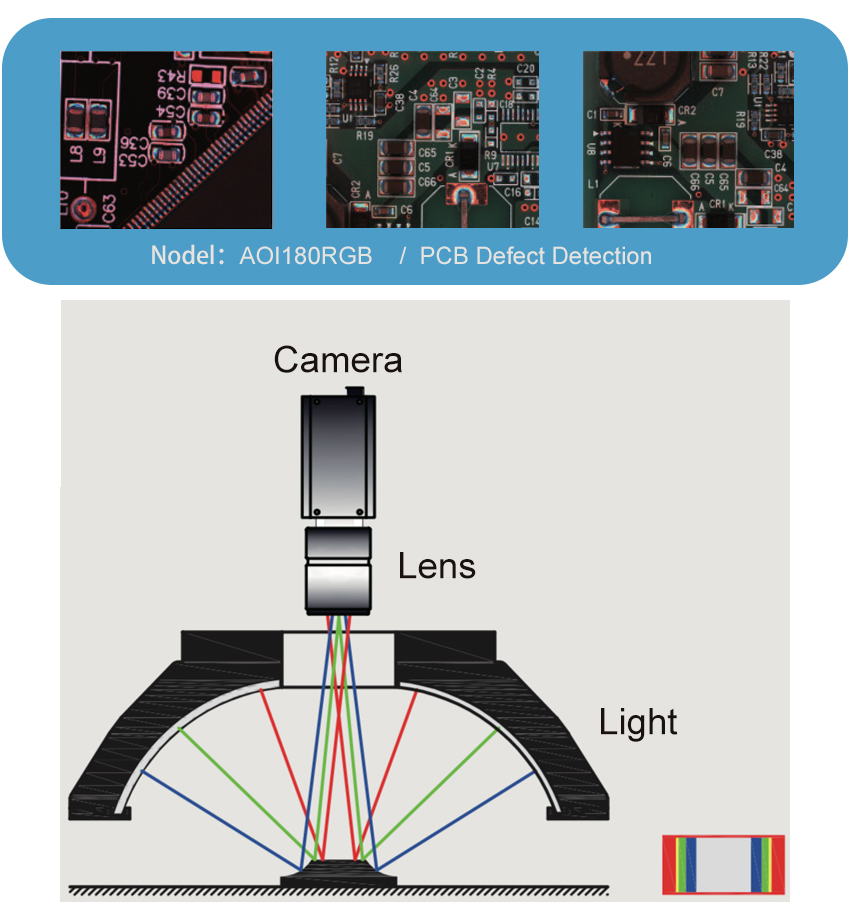

● Illuminate objects in different angles and colors, highlighting the 3D information. ● Each color beads can be designed to be controlled separately. |
|||||
|
|||||
|---|---|---|---|---|---|
|
● PCB soldering inspection ● Surface defects inspection for multiple layers. |
|||||
Specifications |
||
|---|---|---|
| Supply Voltage | 24 V | |
| Power Cons. |
18-48.7 W |
|
| Dimensions | (Variety of options) | |
| Connector | SMR-03V-B | |
| Polarity | 1: (+), 2: NC, 3: (-) | |
| Cable Length | - mm | |
| Operating environment (indoor) |
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
| Life Time |
30,000hrs-60,000hrs (Depends on the operating environment, not a gurantee) |
|
| Case Material | Aluminum alloy, Resin | |
|
|
||
