Information |
||
|---|---|---|
| PD No. | iBOOST15GSW1KM | |
| PD Line | iBOOST Series | |
Sensor |
||
|---|---|---|
| Sensor Type | InGaAs | |
| Resolution | 1024 × 1 | |
| Pixel size | 12.5 μm * 12.5 μm | |
| Line Rate | 15kHz | |
| Spectral Range | 0.9μm to 1.7μm | |
EMVA Data |
||
|---|---|---|
| Dynamic range | ≥78dB | |
| Signal-to-Noise Ratio (typical) | ≥48dB | |
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 14bit, 12bit, 10bit, 8bit | |
| Power Supply | DC 12 V±2V | |
Design |
||
|---|---|---|

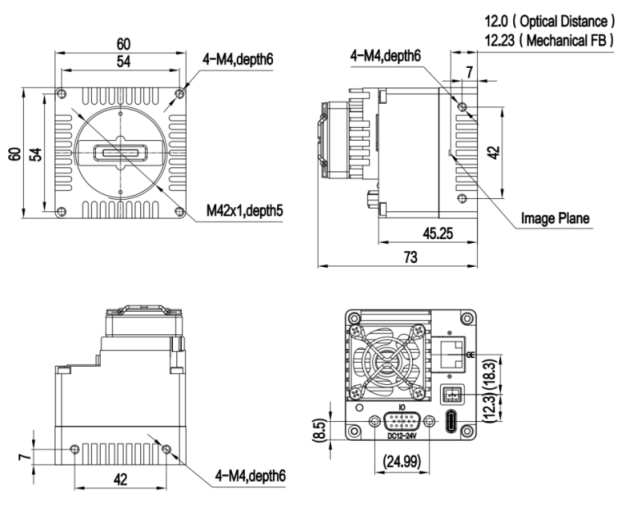

| Dimension | 60×50×68.7mm | |
| Lens Mount | C-mount | |
| Working Temperature | -10- 60°C（Operating），-20- 70°C（Storage） | |
| Weight（Typical） | <340g | |
Software Environment |
||
|---|---|---|
| Operating System | Windows | |
