| PD No. | iDatum90GSWC130M | |
| PD Line | iDatum Series | |
Sensor |
||
|---|---|---|
| Sensor Vendor | Sony | |
| Sensor | IMX990 | |
| Sensor Type | InGaAs | |
| Sensor Size | 1/2" | |
| Resolution | 1280 × 1024 px | |
| Pixel size | 5 μm x 5 μm | |
| Frame Rate | 91 fps | |
EMVA Data |
||
|---|---|---|
| Dynamic range | 56.0 dB | |
| Exposure Time |
UltraShort exposure mode：3μs - 7μs 8μs - 0.1s |
|
Camera Data |
||
|---|---|---|
| Interface | GigE | |
| Pixel Bit Depth | 8 / 10 / 12 bits | |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
|
| I/O | 1 input(opto-isolated)，1 output(opto-isolated) ，1 bidirectional configurable non-isolated I/O, 1 RS232 | |
| Power Supply | 9-24 VDC | |
Design |
||
|---|---|---|

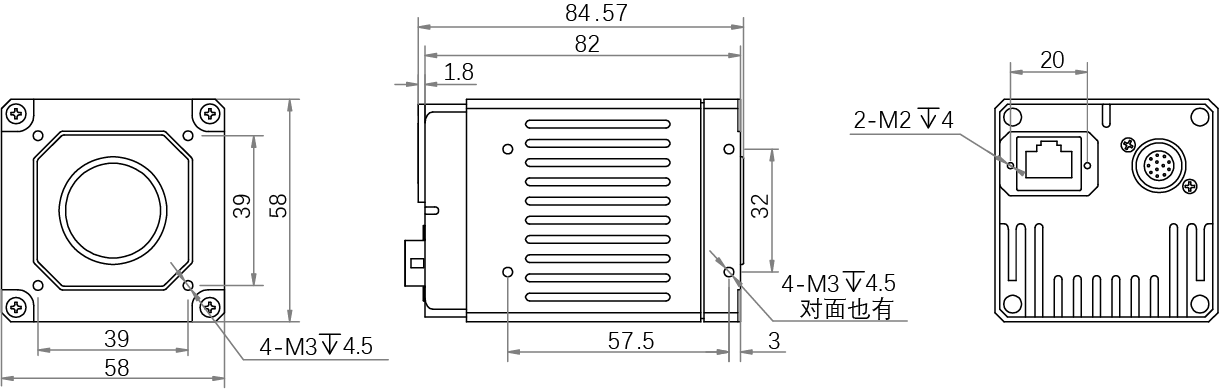

| Dimension(L x W x H) | 58 mm × 58 mm × 82 mm | |
| Lens Mount | C-Mount | |
| Working Temperature | -30- 50°C（Operating），-30- 70°C（Storage） | |
| Weight | 470g | |
Software Environment |
||
|---|---|---|
| Driver , SDK | iDatum or Third-party Software meeting with GigE Vision Protocol | |
| Operating System | Windows | |
| Conformity | GigE Vision / GenICam | |
