General Information |
||
|---|---|---|
| PD No. | VT-LEN1218VSW-S12 | |
| PD Line | FA Series | |
| Type | SWIR Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 3MP | |
| Image Size | 1/2" CCD/CMOS | |
| Focal Length | 12 mm | |
| FOV (D/H/V) | 36.44°/29.02°/23.32 ° | |
| Aperture, F/# | F1.8-16 | |
| Back Focus | 12.6 mm | |
| Distortion | <0.3% | |
| Iris | Manual | |
| Focus | Manual | |
Design |
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | M28.5×P0.5 | |

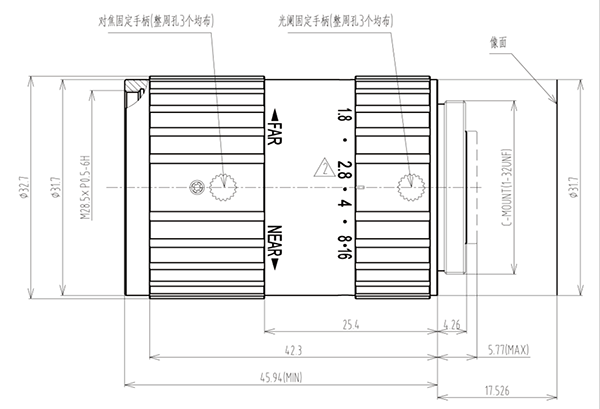

| Dimension | ?32.7×51.71 mm | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
