General Information |
||
|---|---|---|
| PD No. | VT-LEN1618VSW-S12 | |
| PD Line | FA Series | |
| Type | SWIR Lenses | |
Optical Specifications |
||
|---|---|---|
| Resolution | 3MP | |
| Image Size | 1/2" CCD/CMOS | |
| Focal Length | 16 mm | |
| FOV (D/H/V) | 28.14°/22.44°/17.98 ° | |
| Aperture, F/# | F1.8-16 | |
| Back Focus | 13 mm | |
| Distortion | <0.4% | |
| Iris | Manual | |
| Focus | Manual | |

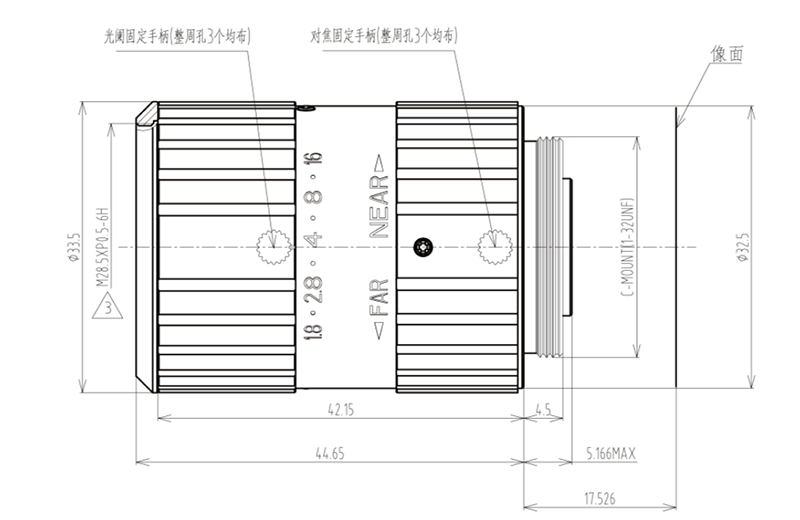

Design |
||
|---|---|---|
| Mount | C-mount | |
| Filter Size | M28.5×P0.5mm | |
| Dimension | ?33.5×49.8 | |
| Temperature Range | -10- 50°C（Working），-20- 60°C（Storage） | |
| Weight | NA | |
